Telecom PCB Solutions

High-frequency and high-speed printed circuit boards engineered for next-generation telecommunications infrastructure. From 5G base stations to fiber optic networks, our telecom-grade PCBs deliver exceptional signal integrity and reliability.

5G NR Ready
RoHS Compliant
Low Dk / Low Df
Up to 77GHz
Product Lineup

Telecom PCB Portfolio

Four specialized PCB solutions designed for telecommunications infrastructure, from macro base stations to high-speed optical networks.

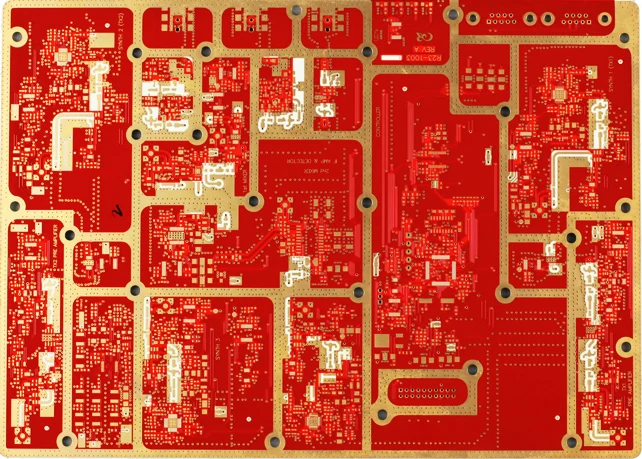

5G Base Station PCB
5G Macro
5G / Macro Base Station

5G Base Station Antenna PCB

High-frequency multilayer PCBs for 5G NR macro base stations, massive MIMO arrays, and active antenna systems (AAS) with mmWave capability.

Layer Count12–20 Layers
MaterialRogers 4350B / Megtron 6 / TU-933
Frequency RangeSub-6GHz / 28GHz / 39GHz
Trace/Space2.5mil / 2.5mil
Impedance Control±3% Tolerance
DK / Df3.48 / 0.0037 (@10GHz)
Surface FinishENIG (5μ" Au) / ENEPIG
CertificationRoHS / IPC Class 3

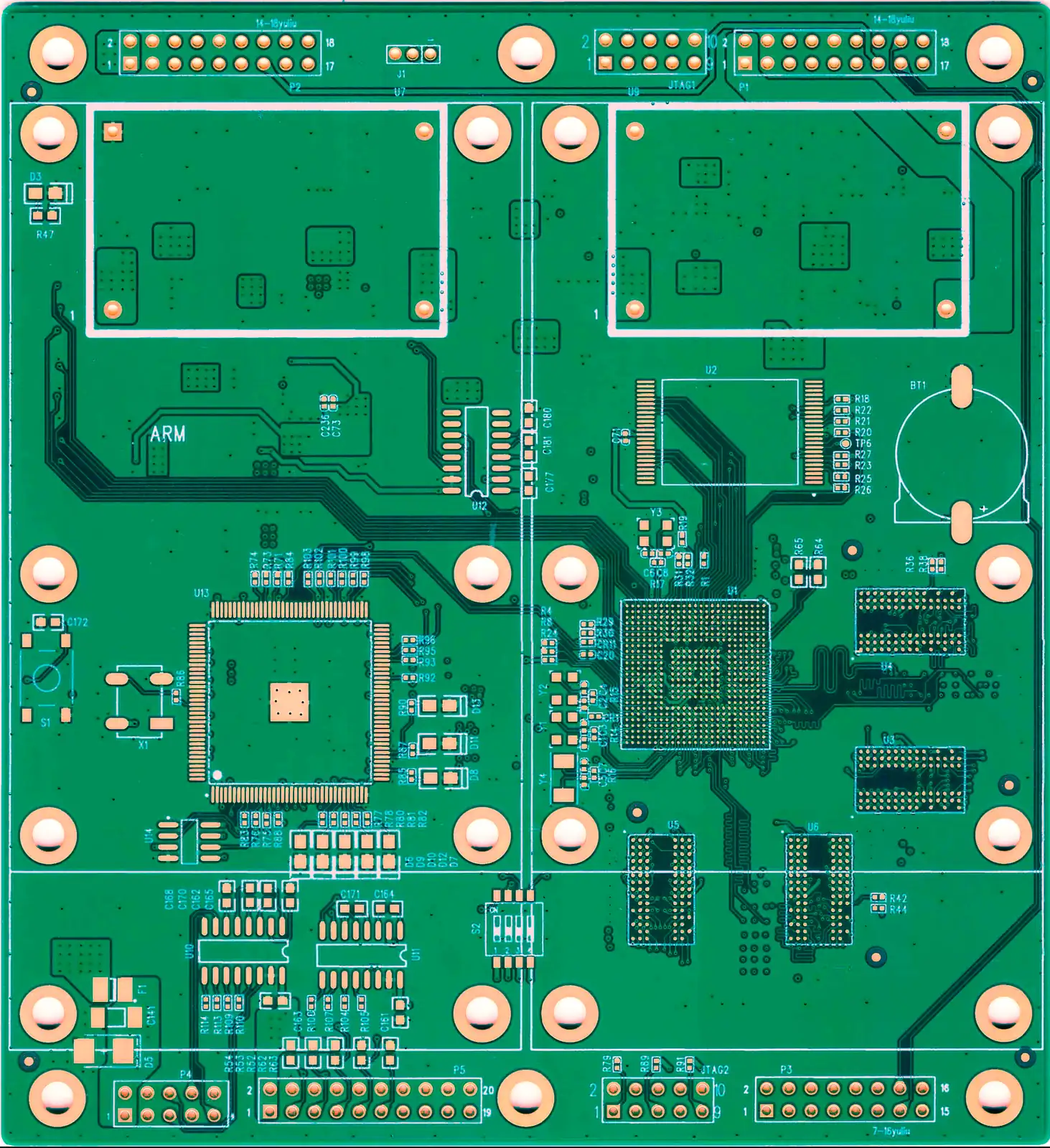

Router Switch PCB
Data Center
Router / Switch / Data Center

Telecom Router & Switch PCB

High-speed digital backplanes and switch fabric PCBs for core routers, Ethernet switches, and data center interconnects supporting 100G/400G speeds.

Layer Count16–40 Layers
MaterialVery Low Loss FR-4 / Megtron 7
Data RateUp to 56Gbps PAM4
Trace/Space2mil / 2mil
BackdrillStub <10mil
Impedance Control±5% Tolerance
Surface FinishENIG / ENEPIG
CertificationRoHS / IPC Class 3

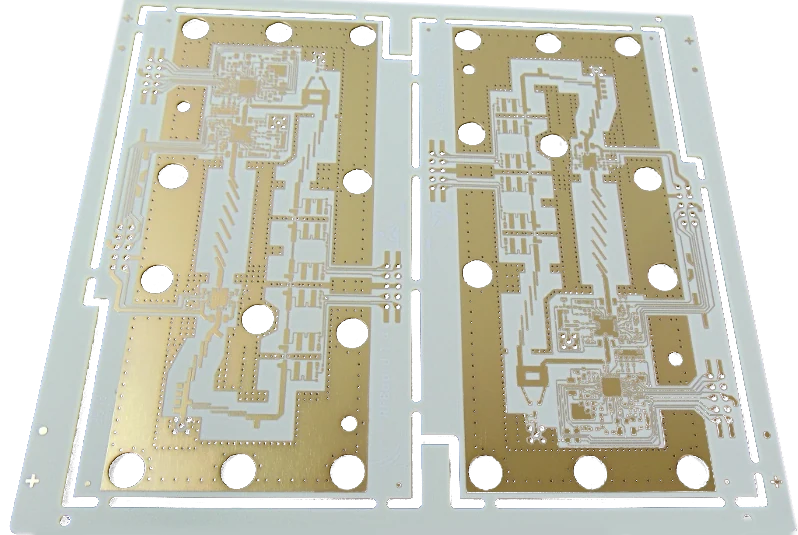

Satellite Communication PCB
Satellite / RF
Satellite / RF / Microwave

Satellite Communication RF PCB

High-frequency RF and microwave PCBs for satellite ground stations, VSAT terminals, and LEO satellite user equipment with Ka/Ku-band capability.

Layer Count4–10 Layers
MaterialRogers 3003 / 4003C / Teflon
Frequency Range1GHz ~ 77GHz
Trace/Space3mil / 3mil
DK / Df3.0 / 0.0013 (Rogers 3003)
Copper Weight1oz (with edge plating)
Surface FinishENIG / Immersion Silver
CertificationRoHS / MIL-PRF-31032

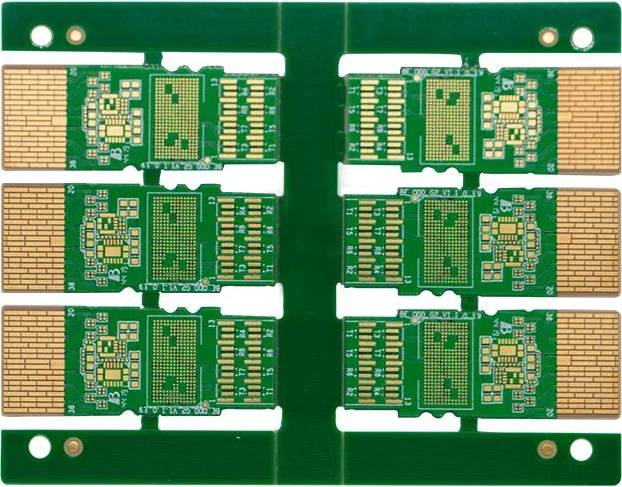

Fiber Optic Transceiver PCB
Optical
Fiber Optic / Optical

Fiber Optic Transceiver PCB

Ultra-high-speed PCBs for optical transceivers, QSFP-DD modules, and coherent DSP boards supporting 100G/400G/800G optical transmission.

Layer Count8–14 Layers HDI
MaterialVery Low Loss / Ultra Low Loss
Data Rate100G / 400G / 800G
Trace/Space2mil / 2mil
Min Via0.075mm Laser Microvia
Impedance Control±3% Tolerance
Surface FinishENIG / ENEPIG
CertificationRoHS / IPC Class 3
📡

mmWave Ready

Up to 77GHz RF performance

⚡

Ultra-High Speed

56Gbps PAM4 signal integrity

📶

Low Loss

Dk 3.0 / Df 0.0013 materials

🔧

Precision

±3% impedance tolerance

Need Telecom PCB Quote?

Our RF and high-speed signal integrity engineering team is ready to support your 5G, satellite, and fiber optic PCB designs with advanced simulation and DFM analysis.

Request Telecom Quote
