Product Lineup
Automotive PCB Portfolio
Four specialized PCB solutions designed for critical automotive applications, each with unique specifications tailored to their operating environment.
High-Speed Digital

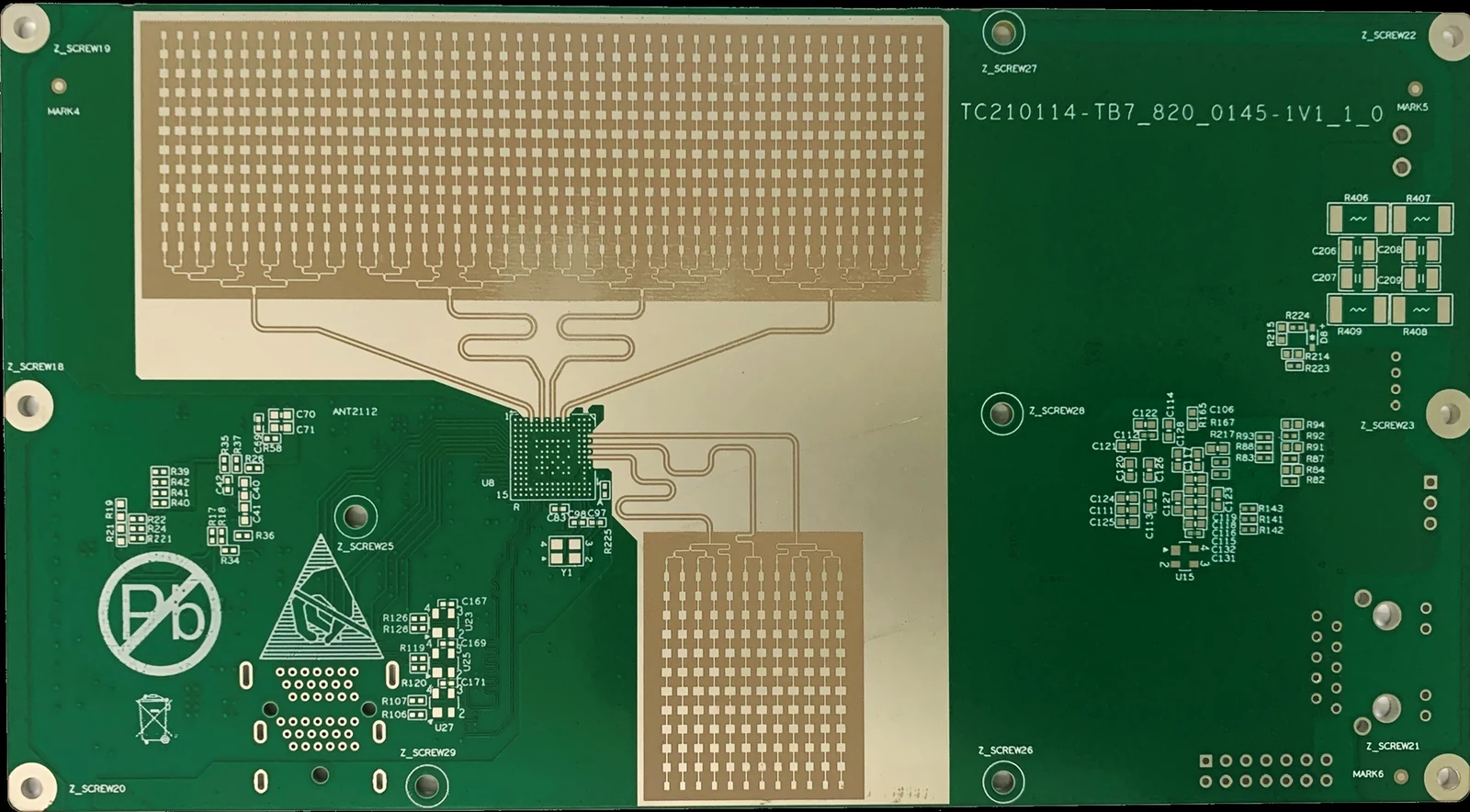

ADAS & Autonomous Driving PCB
Multi-layer HDI board with controlled impedance for radar, LiDAR, and camera processing units requiring ultra-high signal integrity.
| Layer Count | 8–16 Layers |
| Material | High Tg FR-4 / Megtron 6 |
| Trace/Space | 3mil / 3mil |
| Impedance Control | ±5% Tolerance |
| Surface Finish | ENIG (3–5μ" Au) |
| Operating Temp | -40°C ~ +125°C |
| Copper Weight | 1oz Outer / 0.5oz Inner |
| Certification | AEC-Q200 / IPC Class 3 |
Heavy Copper / Power

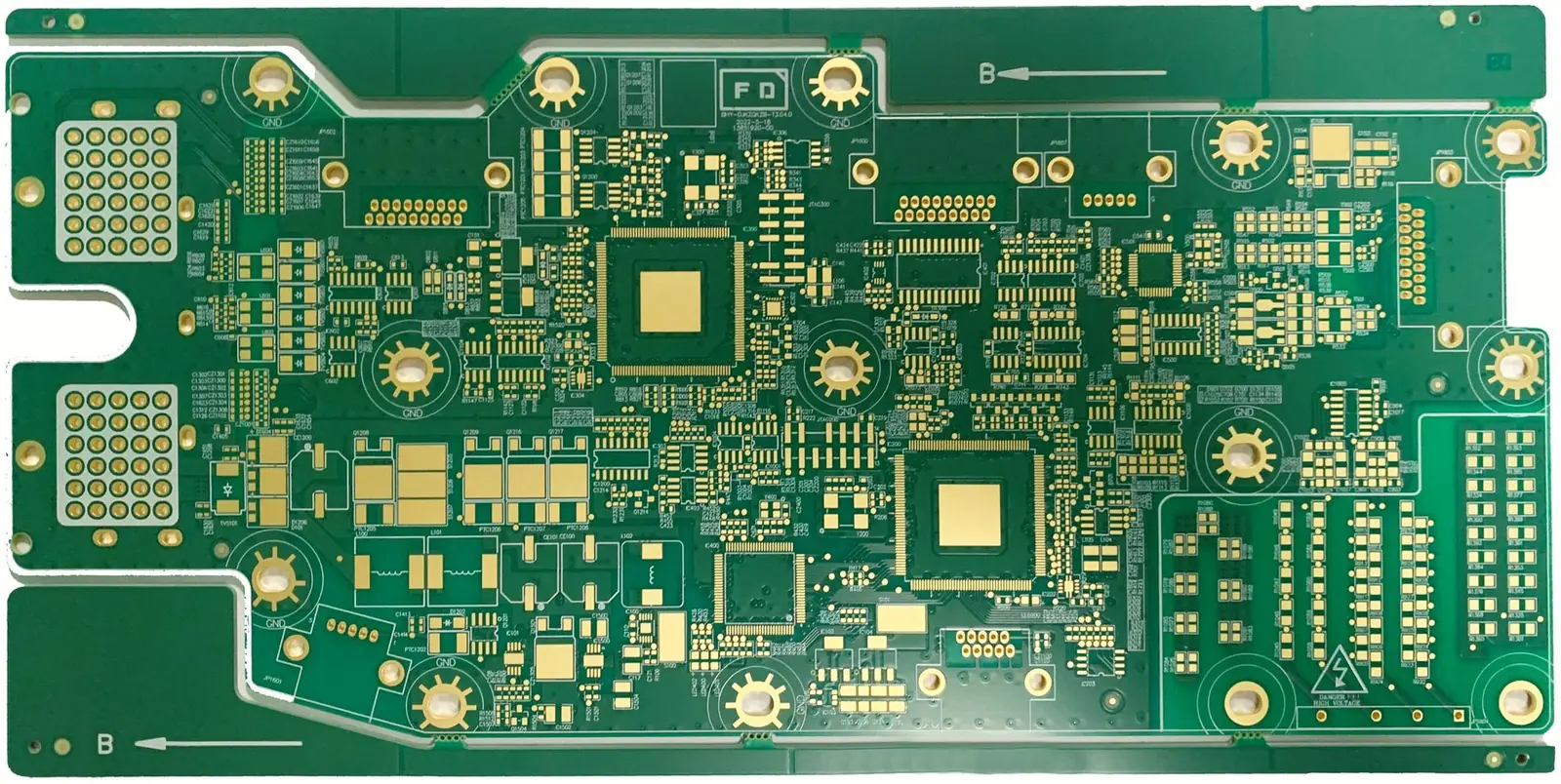

EV Powertrain & BMS PCB
Heavy copper multilayer board for battery management systems, motor controllers, and DC-DC converters handling high current loads.
| Layer Count | 4–12 Layers |
| Material | High Tg FR-4 / Ceramic-filled |
| Copper Weight | 3oz ~ 10oz |
| Min Hole Size | 0.3mm (Mechanical) |
| Surface Finish | Immersion Silver / OSP |
| Operating Temp | -40°C ~ +150°C |
| Thermal Conductivity | ≥2.0 W/m·K |
| Certification | AEC-Q200 / UL 94V-0 |
Metal Core / Thermal

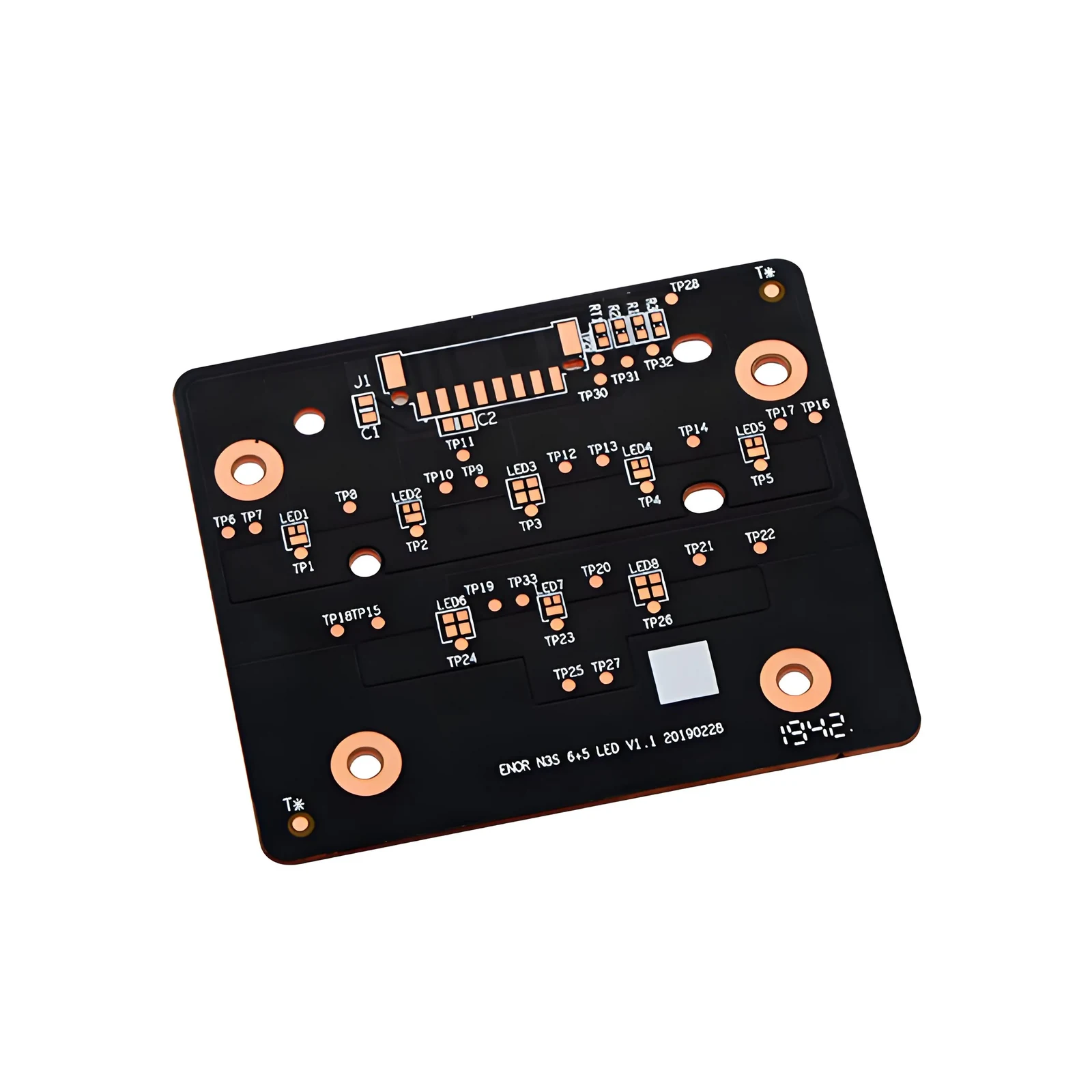

Automotive LED Headlight PCB
Copper-based metal core PCB with exceptional thermal conductivity for high-power LED headlight, taillight, and DRL modules.
| Base Material | Aluminum / Copper MCPCB |
| Layer Count | 1–2 Layers |
| Thermal Conductivity | 2.0–8.0 W/m·K |
| Copper Weight | 2oz ~ 6oz |
| Surface Finish | OSP / Immersion Ag |
| Operating Temp | -40°C ~ +140°C |
| Solder Mask | White / Black (High Reflectivity) |
| Certification | AEC-Q200 / RoHS |
General Automotive

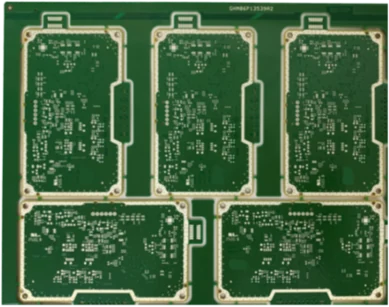

Body Control Module (BCM) PCB
Robust multilayer PCB for BCM, TCU, and gateway modules managing vehicle body electronics, HVAC, and communication networks.
| Layer Count | 4–10 Layers |
| Material | Standard Tg / Mid Tg FR-4 |
| Trace/Space | 4mil / 4mil |
| Min Hole Size | 0.2mm |
| Surface Finish | ENIG / HASL Lead-free |
| Operating Temp | -40°C ~ +105°C |
| Copper Weight | 1oz (All Layers) |
| Certification | AEC-Q200 / IPC Class 2 |
