Industrial PCB Portfolio
Four specialized PCB solutions designed for demanding industrial applications, each optimized for reliability in harsh factory and field environments.

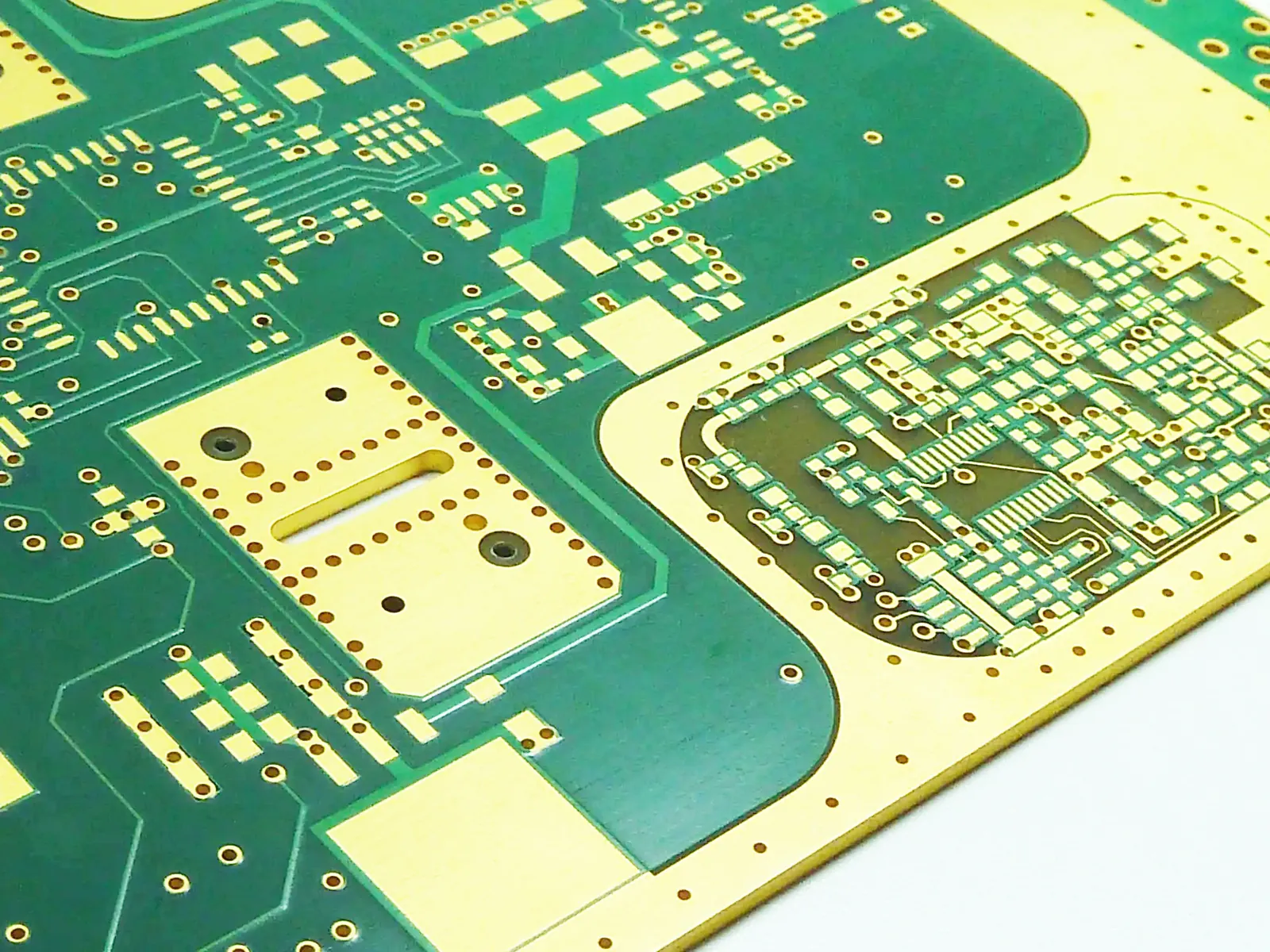

Industrial Automation Control PCB
Multilayer control boards for programmable logic controllers (PLC), distributed control systems (DCS), and SCADA interfaces with extended temperature reliability.
| Layer Count | 4–8 Layers |
| Material | High Tg FR-4 (Tg ≥170°C) |
| Trace/Space | 4mil / 4mil |
| Copper Weight | 1oz ~ 3oz |
| Surface Finish | ENIG / HASL Lead-free |
| Operating Temp | -40°C ~ +85°C |
| Board Thickness | 1.6mm ~ 3.2mm |
| Certification | IPC Class 2 / RoHS / UL |

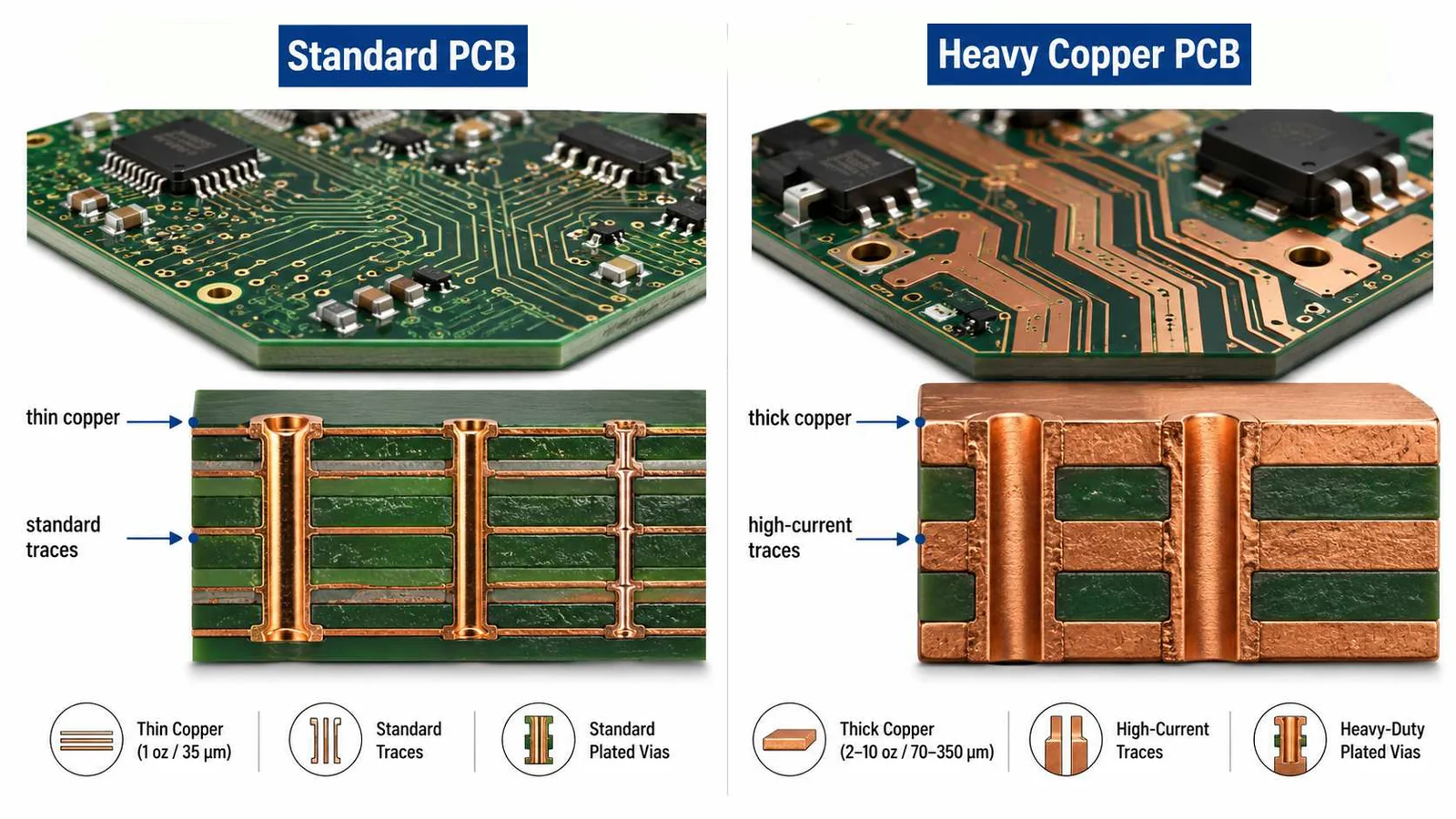

Motor Drive & Inverter PCB
Heavy copper multilayer boards for variable frequency drives (VFD), servo amplifiers, and power inverters handling high current and thermal loads.
| Layer Count | 2–6 Layers |
| Material | High Tg FR-4 / Ceramic-filled |
| Copper Weight | 3oz ~ 10oz |
| Min Hole Size | 0.3mm (Mechanical) |
| Surface Finish | Immersion Silver / OSP |
| Operating Temp | -40°C ~ +125°C |
| Thermal Conductivity | ≥2.0 W/m·K |
| Certification | IPC Class 2 / RoHS / UL 94V-0 |

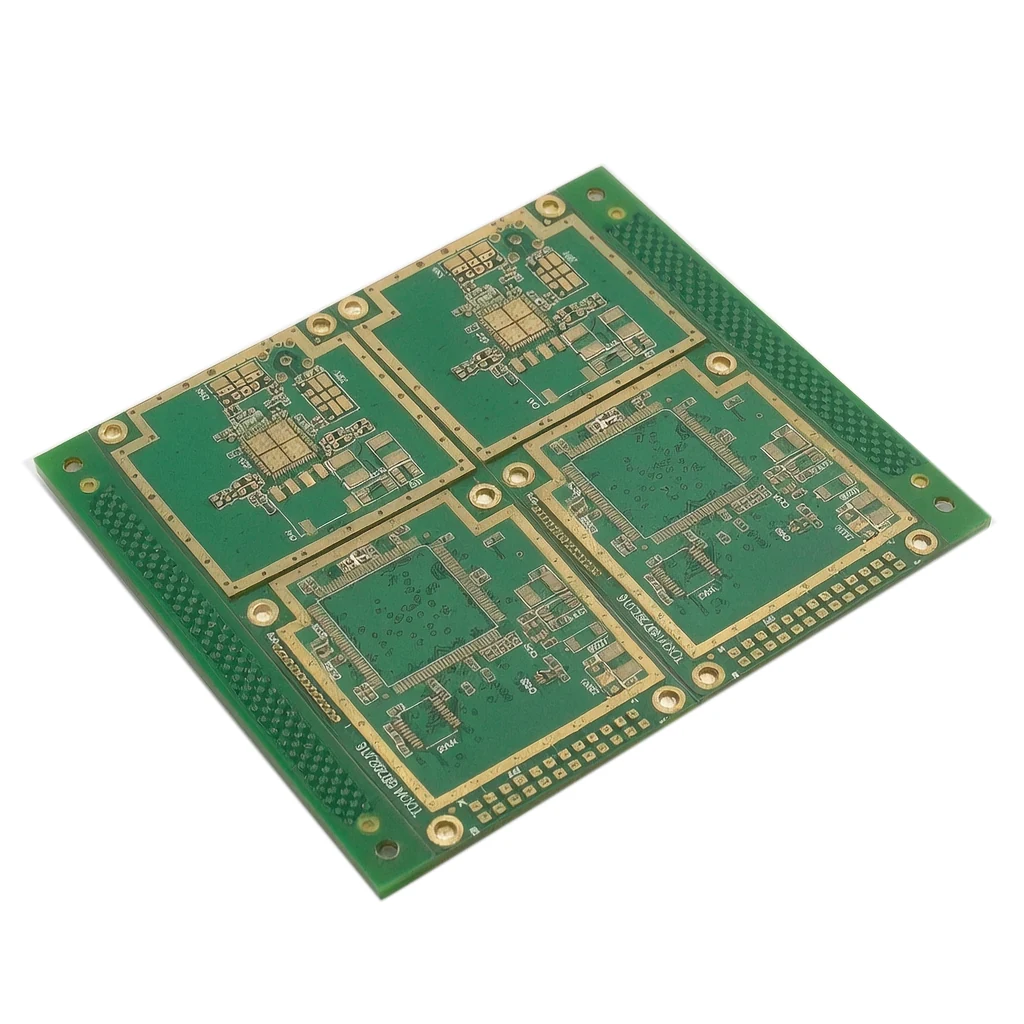

Industrial IoT Sensor PCB
Compact HDI boards for smart factory sensors, wireless monitoring nodes, and edge computing devices with integrated antenna and low-power design.
| Layer Count | 4–10 Layers HDI |
| Material | Low Dk / Low Df FR-4 |
| Trace/Space | 3mil / 3mil |
| Min Via | 0.1mm Laser Microvia |
| Surface Finish | ENIG / ENEPIG |
| Operating Temp | -40°C ~ +85°C |
| Wireless | Antenna Integration Ready |
| Certification | IPC Class 2 / RoHS |

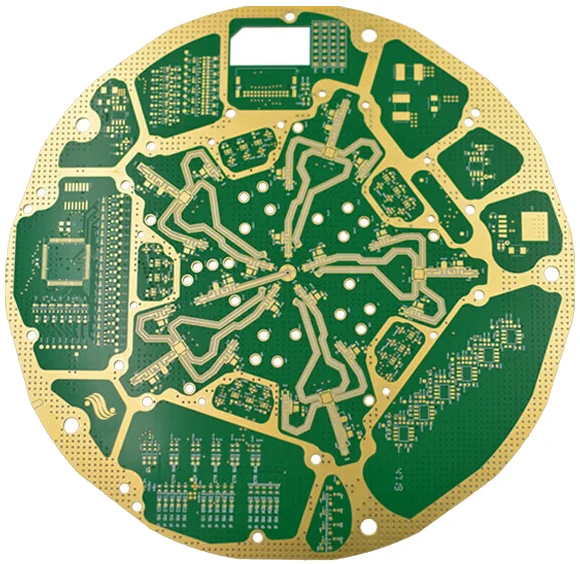

Robotics Servo Control PCB
High-density multilayer boards for collaborative robots, CNC controllers, and precision servo drives requiring real-time signal integrity and vibration resistance.
| Layer Count | 6–12 Layers |
| Material | High Tg FR-4 / Megtron 6 |
| Trace/Space | 3mil / 3mil |
| Impedance Control | ±5% Tolerance |
| Surface Finish | ENIG (3–5μ" Au) |
| Operating Temp | -20°C ~ +85°C |
| Vibration | 5G Random / 20G Shock |
| Certification | IPC Class 3 / RoHS |
