Energy PCB Portfolio
Four specialized PCB solutions powering the clean energy transition — from photovoltaic systems and energy storage to electric vehicle infrastructure and wind power generation.

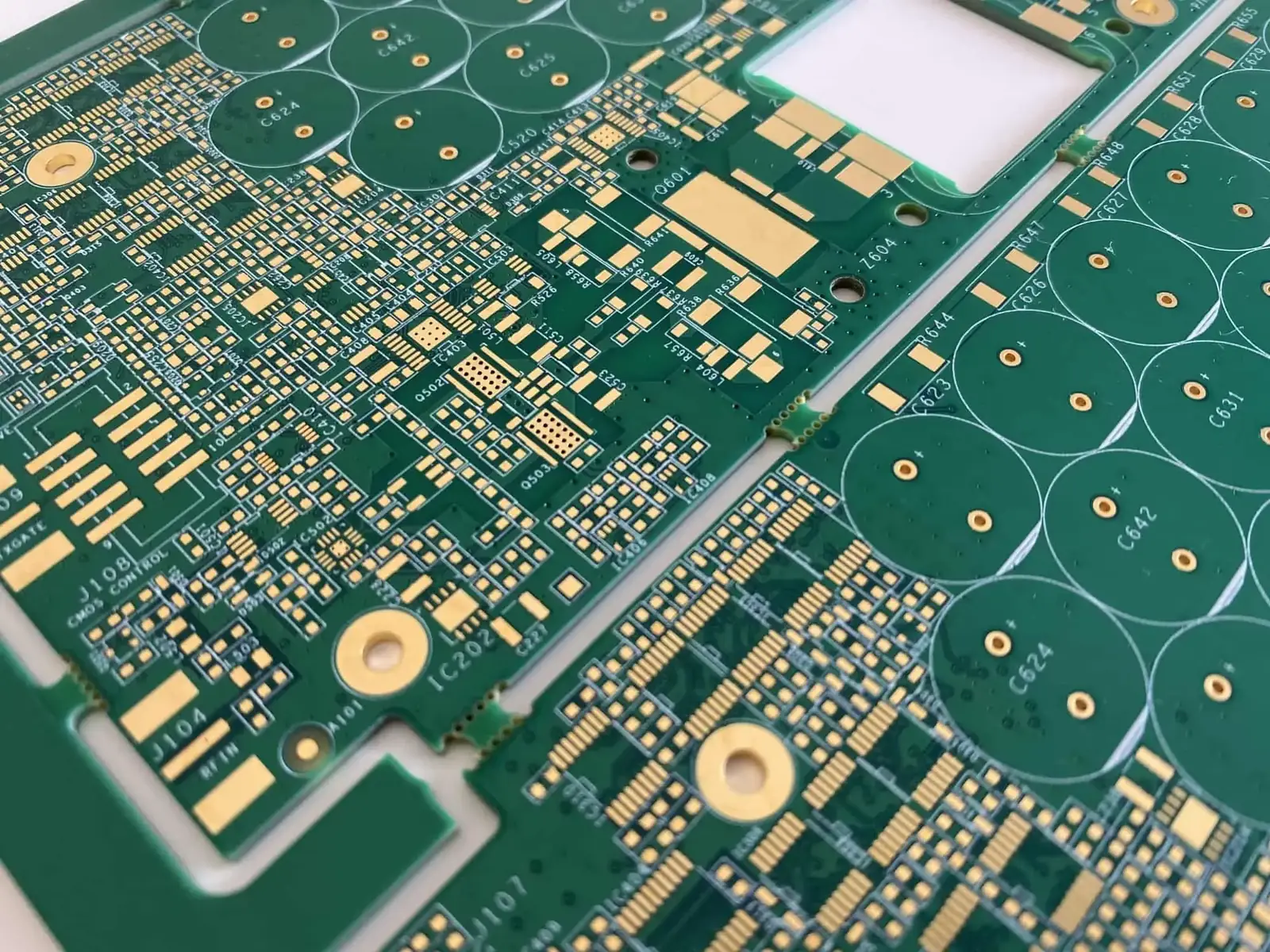

Solar Inverter Main Control PCB
High-power multilayer boards for string inverters and hybrid solar power systems. Engineered with thick copper traces and aluminum substrate options for superior thermal management in outdoor installations.
| Layer Count | 6–12 Layers |
| Material | High Tg FR-4 / Al-Substrate |
| Copper Weight | 3oz – 6oz |
| Voltage Rating | 1000V DC |
| Power Range | 5kW – 50kW |
| Trace/Space | 4mil / 4mil |
| Surface Finish | ENIG / Immersion Ag |
| Operating Temp | -40°C ~ +85°C |
| Certification | UL / IEC 62109 / VDE |

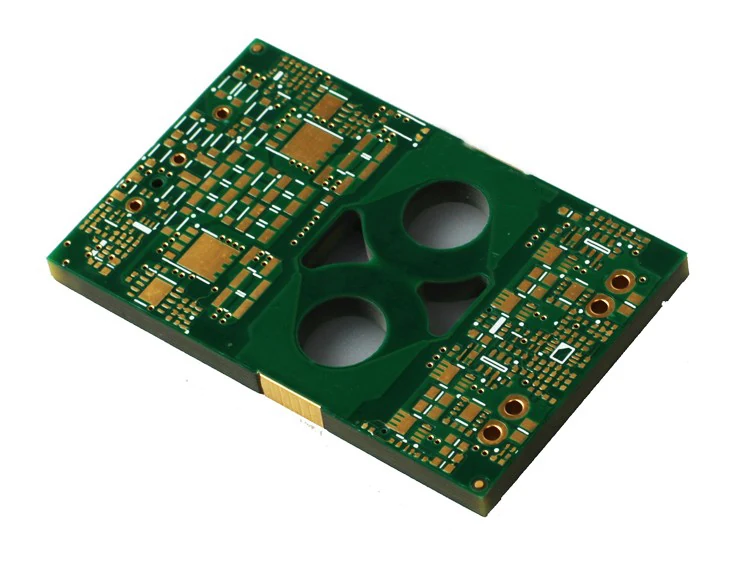

Energy Storage BMS PCB
Precision battery management system boards for lithium-ion and LiFePO₄ energy storage systems. Features high-accuracy cell voltage detection, active/passive balancing, and integrated CAN/RS485 communication.
| Layer Count | 4–8 Layers |
| Material | High Tg FR-4 |
| Copper Weight | 1oz – 2oz |
| Cell Series | 16S – 32S |
| Continuous Current | 100A – 300A |
| Trace/Space | 3mil / 3mil |
| Communication | CAN / RS485 / UART |
| Operating Temp | -20°C ~ +60°C |
| Certification | UL 1973 / IEC 62619 |

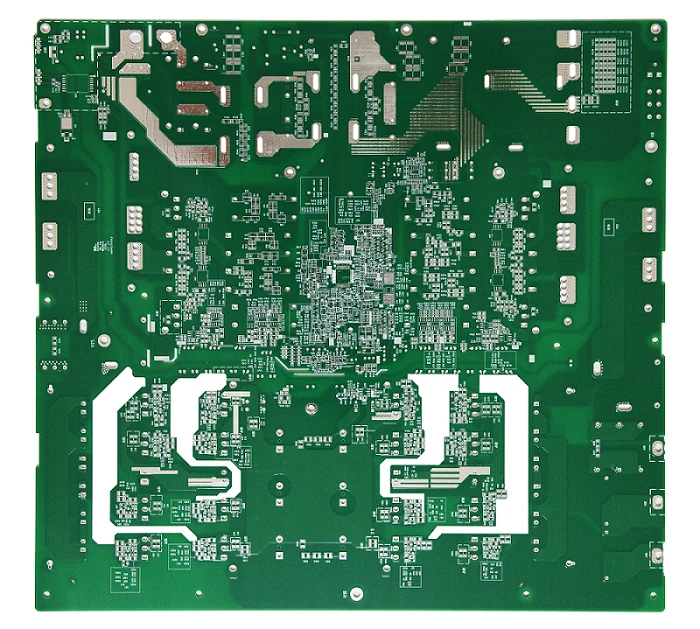

EV Charging Station Control PCB
Smart control boards for AC and DC electric vehicle charging stations. Integrates payment module, RFID reader, LCD display driver, and OCPP 2.0.1 communication protocol for seamless grid integration.
| Layer Count | 4–6 Layers |
| Material | FR-4 / High Tg FR-4 |
| Copper Weight | 2oz – 4oz |
| AC Power | 7kW – 22kW |
| DC Power | 30kW – 120kW |
| Trace/Space | 4mil / 4mil |
| Protocols | OCPP 2.0.1 / Modbus |
| Operating Temp | -30°C ~ +70°C |
| Certification | IEC 61851 / UL 2594 / CE |

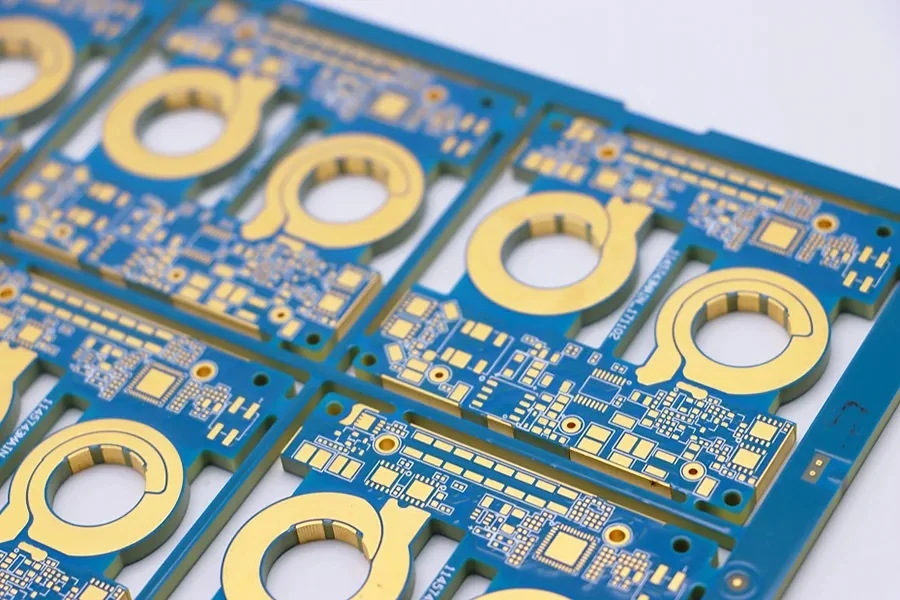

Wind Power Converter PCB
Ultra-high current PCBs for wind turbine power converters and grid-tie inverters. Designed with extra-thick copper up to 10oz, ceramic substrate options, and full EMC shielding for reliable offshore operation.
| Layer Count | 8–16 Layers |
| Material | High Tg FR-4 / Ceramic |
| Copper Weight | 4oz – 10oz |
| Voltage Rating | 690V AC / 1500V DC |
| Power Range | 1.5MW – 6MW |
| Trace/Space | 5mil / 5mil |
| EMC Shielding | Full Copper Planes |
| Operating Temp | -40°C ~ +70°C |
| Certification | IEC 61400 / DNV GL |
