LED Lighting PCB Portfolio
Four specialized PCB solutions designed for LED lighting applications, each optimized for thermal performance, light output, and long-term reliability.

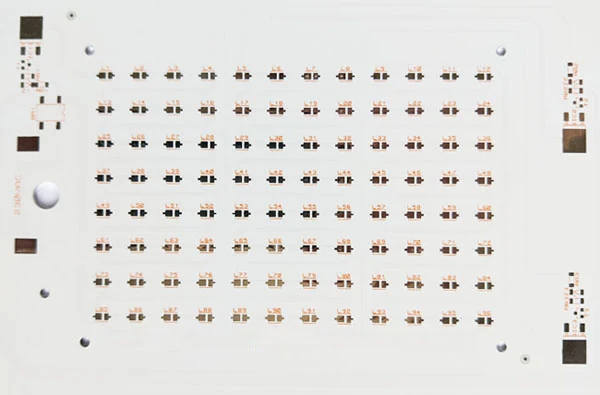

LED Street Light MCPCB
High-power aluminum metal core PCBs for outdoor street lights, tunnel lights, and high-bay fixtures. Engineered for superior thermal conductivity and IP-rated environmental protection.
| Base Material | Aluminum MCPCB |
| Layer Count | 1–2 Layers |
| Thermal Conductivity | 1.0–3.0 W/m·K |
| Copper Weight | 2oz ~ 4oz |
| Surface Finish | OSP / Immersion Ag |
| Solder Mask | White (High Reflectivity ≥85%) |
| Power Range | 50W – 300W |
| Certification | RoHS / UL 94V-0 |
LED Display Panel PCB
Multilayer driver and control PCBs for indoor/outdoor LED video walls, digital signage, and transparent LED screens with precise pitch alignment and signal integrity.
| Layer Count | 2–4 Layers |
| Material | FR-4 / Aluminum Base |
| LED Pitch | P1.25 – P10 |
| Trace/Space | 3mil / 3mil |
| Surface Finish | ENIG / HASL Lead-free |
| Solder Mask | Black / Matte Black |
| Board Size | Up to 600mm × 1200mm |
| Certification | RoHS / IPC Class 2 |

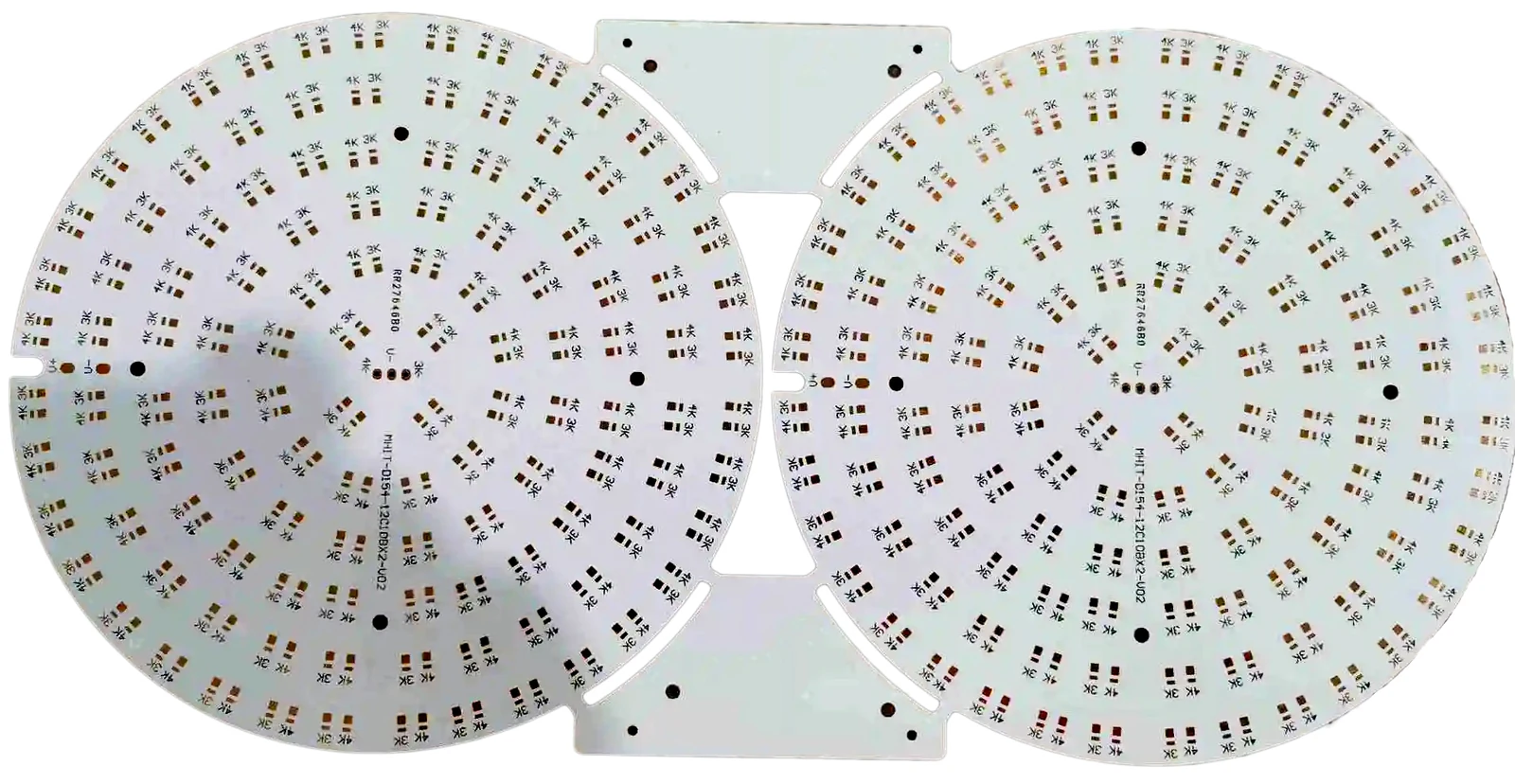

LED Downlight & Spotlight PCB
Compact round and square aluminum PCBs for ceiling downlights, track spotlights, and panel lights. Available in Driver-on-Board (DOB) and external driver configurations.
| Base Material | Aluminum / FR-4 |
| Layer Count | 1–2 Layers |
| Shape | Round / Square / Custom |
| Copper Weight | 1oz ~ 2oz |
| Driver Type | DOB / External Driver |
| Solder Mask | White / Yellow (High Reflectivity) |
| Power Range | 3W – 30W |
| Certification | RoHS / CE / ERP |
LED Grow Light PCB
Ultra-high thermal conductivity aluminum PCBs for horticulture lighting, supporting full-spectrum white, red/blue combo, and UV-IR configurations for maximum photosynthetic photon flux.
| Base Material | Aluminum MCPCB |
| Layer Count | 1–2 Layers |
| Thermal Conductivity | 2.0–8.0 W/m·K |
| Copper Weight | 2oz ~ 6oz |
| Surface Finish | OSP / Immersion Ag |
| Spectrum | Full / Red+Blue / UV-IR |
| Power Range | 100W – 600W |
| Certification | RoHS / UL / DLC |
